8ft x 8ft CNC Machine Table Servo 9Kw Spindle ATC ISO30 Pendant - $12,995 (Spring/Houston, TX)
QR Code Link to This Post
* 2500 x 2500mm (98.4 inches) cutting area
* 8 Inches of Z under collet
* T-Slot Table
* 9Kw Automatic Tool Changing Spindle (air cooled) 18k RPM 12 Tools
* ISO30 Tool Holders
* Lubrication System
* 380 to 480v AC / 3 Phase / 60hz (could be converted to single phase by a smart person)
* Touchoff for ATC tool height setting
* Braking Resistors for spindles and servos
* Emergency Stops on both sides of the gantry

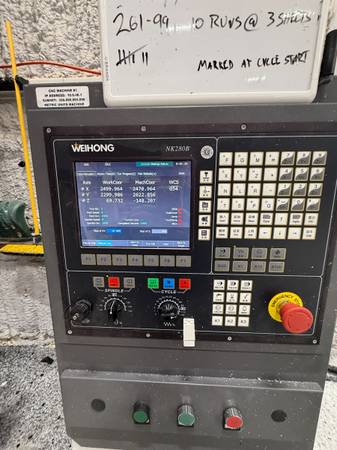

* Weihong NK280 Control system - works with vCarve, Fusion 360 and all other common G-Code Systems with 9 feet of cable between control panel and machine
* Remote Pendant
* Can be split for shipping, will load on your trailer/truck and will ship
* Purchased New 2023 - have only been used to cut plastic
* Includes up to 8 hours of free one-on-one support
* Video of machine: https://youtu.be/xBPqZcApvSQ?si=t7_EmTBXmvlppUVS
