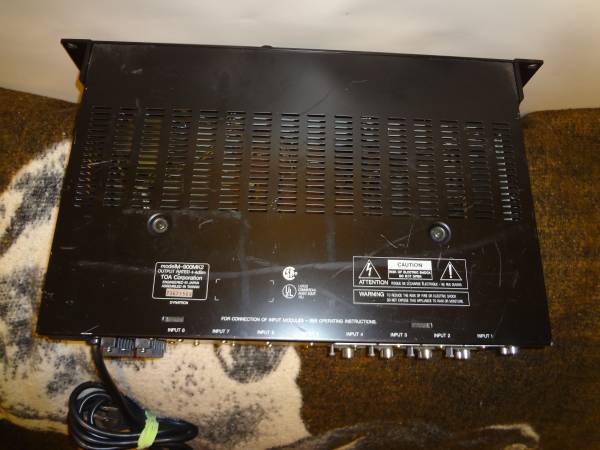

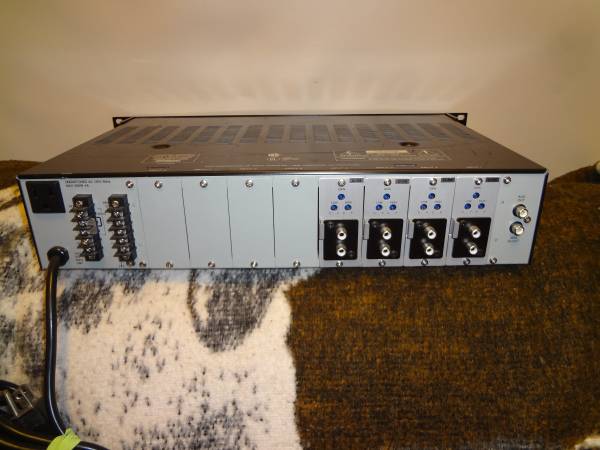

TOA model M-900MK2 Amp unit - $140
QR Code Link to This Post
Amplifier and pre-amp
8 mixes on this one and works great!
Amplificador y preamplificador TOA modelo M-900MK2
¡Tiene 8 mezclas y funciona de maravilla!
$140
Skip to product information
TOA Electronics 8-Channel Mixer Preamplifier - M-900MK2 Audio Amplifiers TOA
TOA Electronics 240W 5-Channel Modular Mixer/Amplifier - A-2240 CU Audio Amplifiers TOA
TOA Electronics 240W 5-Channel Modular Mixer/Amplifier - A-2240 CU Audio Amplifiers T
TOA Electronics 8-Channel Mixer Preamplifier - M-900MK2
Regular price $662.00 Sale price $535.00
Shipping calculated at checkout.
No reviews
TOA | SKU: M-900MK2 UL
Qty
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at show contact info or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Accepted payment methods
You May Also Like...
TOA Electronics 8-Channel Mixer Preamplifier - M-900MK2 Audio Amplifiers TOA
Overview
The TOA M-900MK2 is an 8-slot modular mixer preamplifier that accepts any combination of TOA plug-in input modules. With a balanced transformer-isolated output delivering up to +20 dBm and a vanishingly low 0.01% THD, it is the central control hub in TOA commercial paging and background music systems.
Description
The M-900MK2 provides a flexible, user-configurable mixing platform for small to medium commercial AV installations. Its eight module slots accept any TOA plug-in input module — including microphone, line, telephone interface, tuner, and priority input modules — enabling you to tailor the system precisely to your application without external adapters. A bridging RCA jack expands the system by linking multiple M-900MK2 units. Individual channel potentiometers, bass and treble tone controls (±10 dB), and a master output pot give complete front-panel control. Status LEDs monitor power, peak, protect, signal, and normal conditions at a glance, while dual mute buses and protection circuitry guard system integrity.
Key Features
8 slots for TOA plug-in input modules (mix any combination of mic, line, tuner, phone, etc.)
Balanced transformer-isolated output: +4 dBm nominal, +20 dBm maximum
Ultra-low 0.01% THD for clean, broadcast-quality audio
Power bandwidth: 30 Hz – 20 kHz at +20 dBm, 0.5% THD
Bass and treble tone controls ±10 dB
Dynamic range: 90 dB at minimum volume; 77 dB at maximum volume
Dual mute bus for priority paging and emergency override
Bridge in/out RCA jack for system expansion
Status LEDs: Power, Peak, Protect, Signal, Normal
Self-protection with internal AC fuses
Typical Applications
Commercial paging and BGM systems in retail, hospitality, and corporate facilities
Multi-source mixing for distributed audio systems
Zone control preamplifier driving TOA 70V/100V power amplifiers
Houses of worship PA system source mixing
Healthcare and education campus announcement systems
