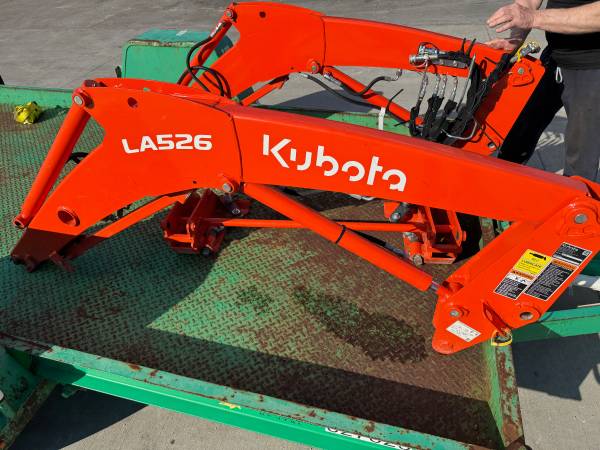

Kubota LA526 front and loader and quick attach plate new for L-series - $2,250 (Pearland)
QR Code Link to This Post

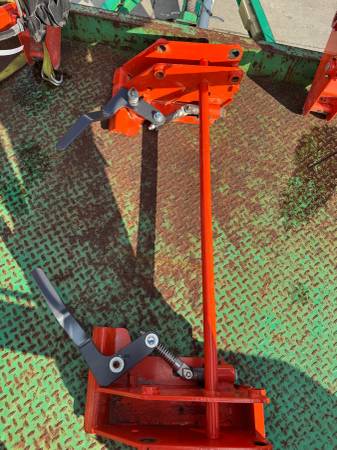

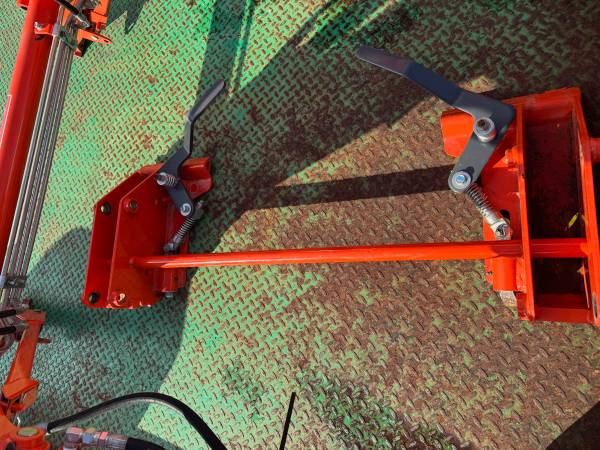

You may need mount brackets your tractor. These vary by tractor model and need to be ordered from Kubota. You will need hydraulic valve for L-series that can be had on ebay for $300-600 or purchase new from kubota for $1300. This setup will cost you over $10K if you were to buy it from kubota
Will fit L2501, L3302, L3902 L3301, L3901and the L4701 tractors
Maximum Lift Height (Pivot Pin): Around 94.8 inches (2409 mm).
Lift Capacity (Max Height, Pivot Pin):
L2502: ~1096 lbs (497 kg).
L3302/L3902: ~1144 lbs (519 kg).
Lift Capacity (@ 1.5m, Pivot Pin):
L2502: ~1446 lbs (656 kg).
L3302/L3902: ~1506 lbs (683 kg).
Clearance with Bucket Dumped: Around 74.6 inches (1896 mm).
Reach at Max Height (Bucket Dumped): About 24.5 inches (622 mm).
Maximum Rollback Angle: ~31 degrees.
Maximum Dump Angle: ~41 degrees.
Bucket: Often comes with a 60-inch pin-on bucket.

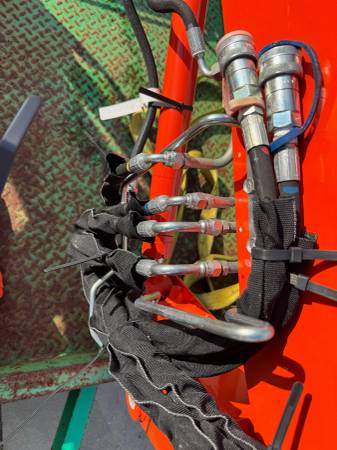

Features: Integrated 3rd function valve for grapples/attachments, quick-attach/detach system (no tools needed).
