HCDC 1-input, 8-output, 40 Amp DC power Splitter and Distribution Module - $60 (Houston)
16618 Clay Rd
condition:
new
QR Code Link to This Post

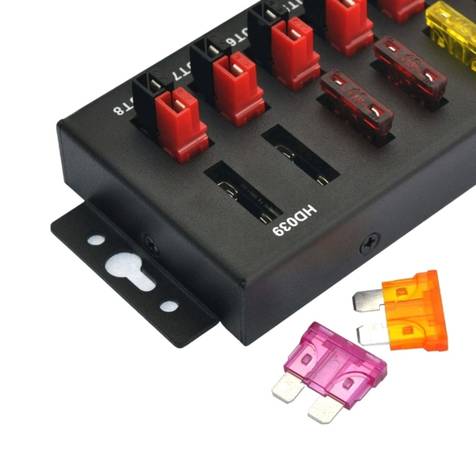

Manufacturer model: HD039
It has one input and eight output ports, designed for organizing multiple DC devices in various setups like ham radio, car audio, or RV power management.
The maximum current capacity is 40A for the input.
The output ports feature different fuse ratings (30A, 20A, 10A, 5A, 3A) to match various gear requirements.
It includes a power indicator LED and individual fault indicator LEDs for each fuse, which are easily replaceable from the outside.
The unit is housed in a durable aluminum case for heat dissipation and protection.
Operating voltage: 0 to 32VDC, No-load current: 2mA(for power indicator LED). Input port: maximum input current 40A, fuse 40A. Output port: 8 output ports, fuse 30A*2, 20A*2, 10A*2, 5A*1, 3A*1.
With power indicator LED. High-quality fuse holder, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A.
Enclosure: High quality aluminum enclosure,thickness 1.5mm/0.06".
Overall Dimensions(maximum, w/o cables): L180mm x W62mm x H33mm / 7.09"x2.44"x1.30". Gross weight: 300g, Net weight: 230g.
Packing list: 1x Distribution module, 9x black power pole housings, 9x red power pole housings, 9x PVC cover flame retardant sleeve, 18x silver plated copper 30A 14-12AWG power pole contacts, 2x tinned copper 45A 12-10AWG power pole contacts.
Overall Dimensions and Weight:
7.09"x2.44"x1.30".
Gross weight: 10.5oz, Net weight: 8.1oz
Internal code no. 00273
